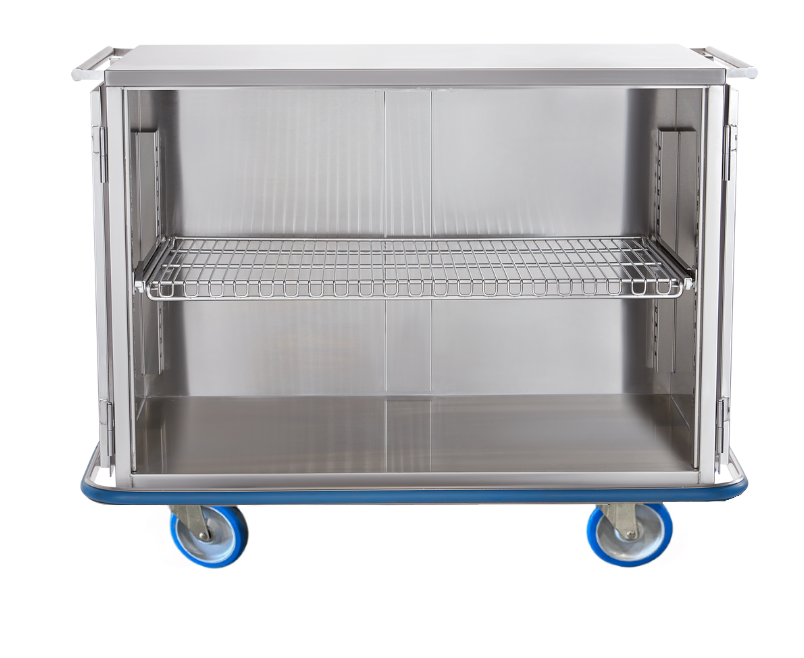

Maxi Case Cart
The maxi case cart is good for procedures that require a larger volume of supplies such as neurosurgery and orthopedic surgery. It comes standard with one heavy-duty roll-out wire shelf.
External Dimensions: 52"W x 40-1/2"H x 29"D
Internal Dimensions: 42-7/8”W x 29-3/8”H x 25”D
The maxi case cart is good for procedures that require a larger volume of supplies such as neurosurgery and orthopedic surgery. It comes standard with one heavy-duty roll-out wire shelf.
External Dimensions: 52"W x 40-1/2"H x 29"D
Internal Dimensions: 42-7/8”W x 29-3/8”H x 25”D
| Name/Model # | Item # | Dimensions (WxHxD) | Ship Weight |
|---|---|---|---|

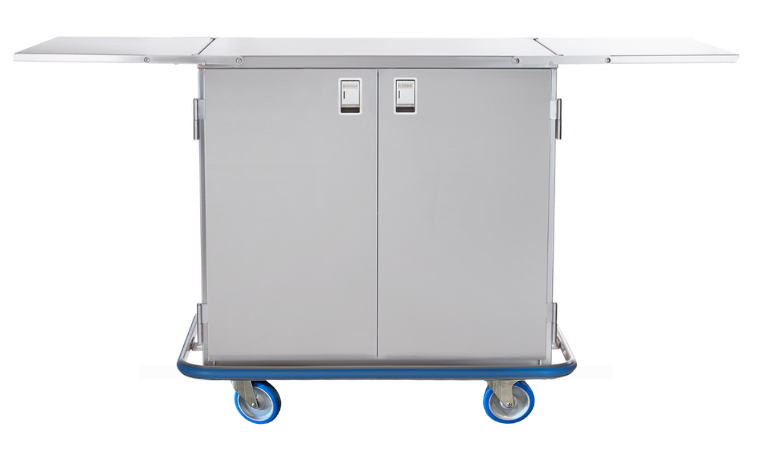

| Solid Doors (CCC1-19) | 2293331000 | 52" x 40-1/2" x 29" | 266 lbs. |

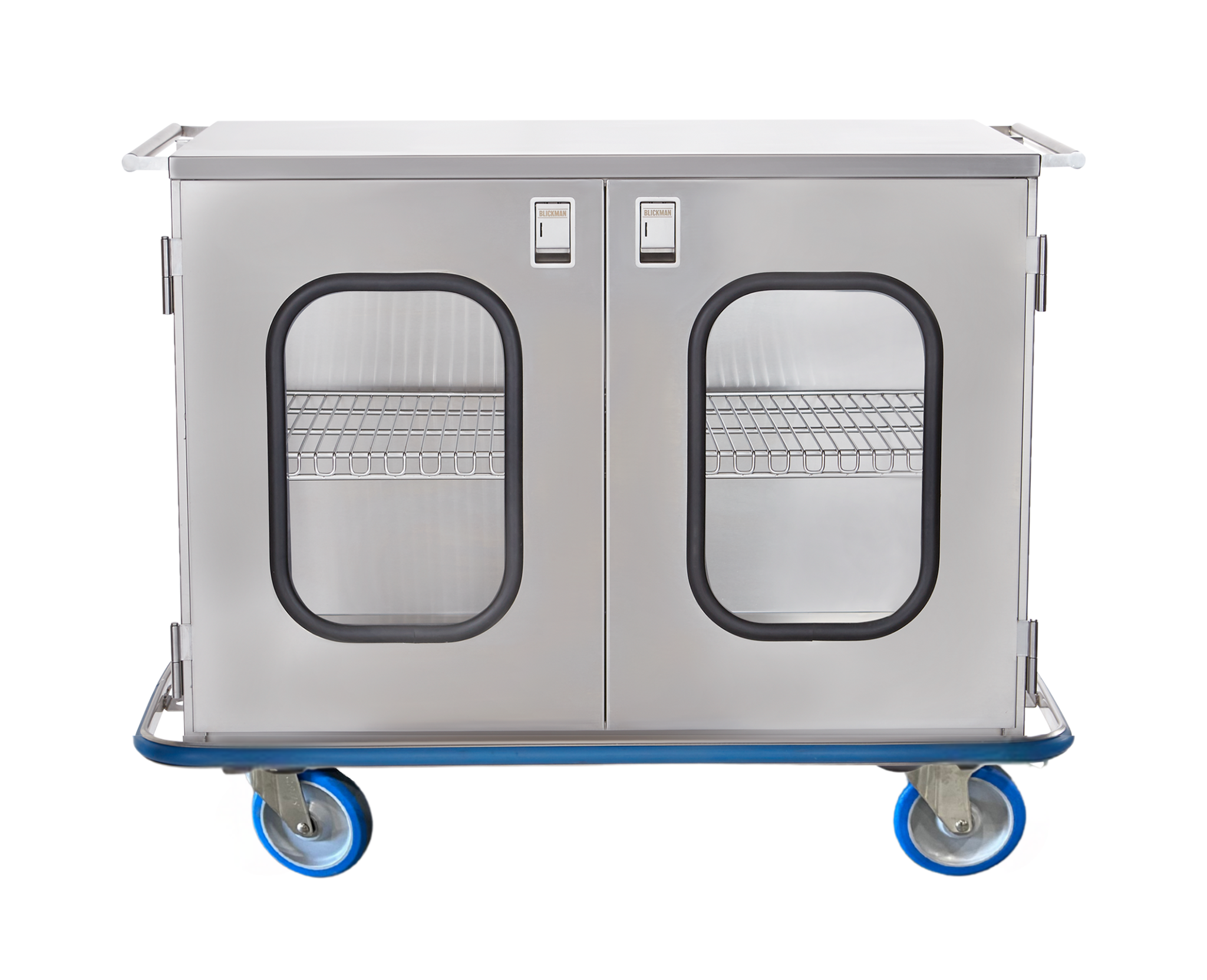

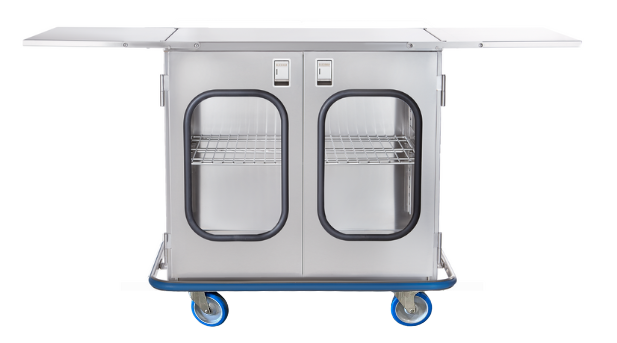

| Glass Doors (CCC1-19G) | 22933G1000 | 52" x 40-1/2" x 29" | 260 lbs. |
Standard Features

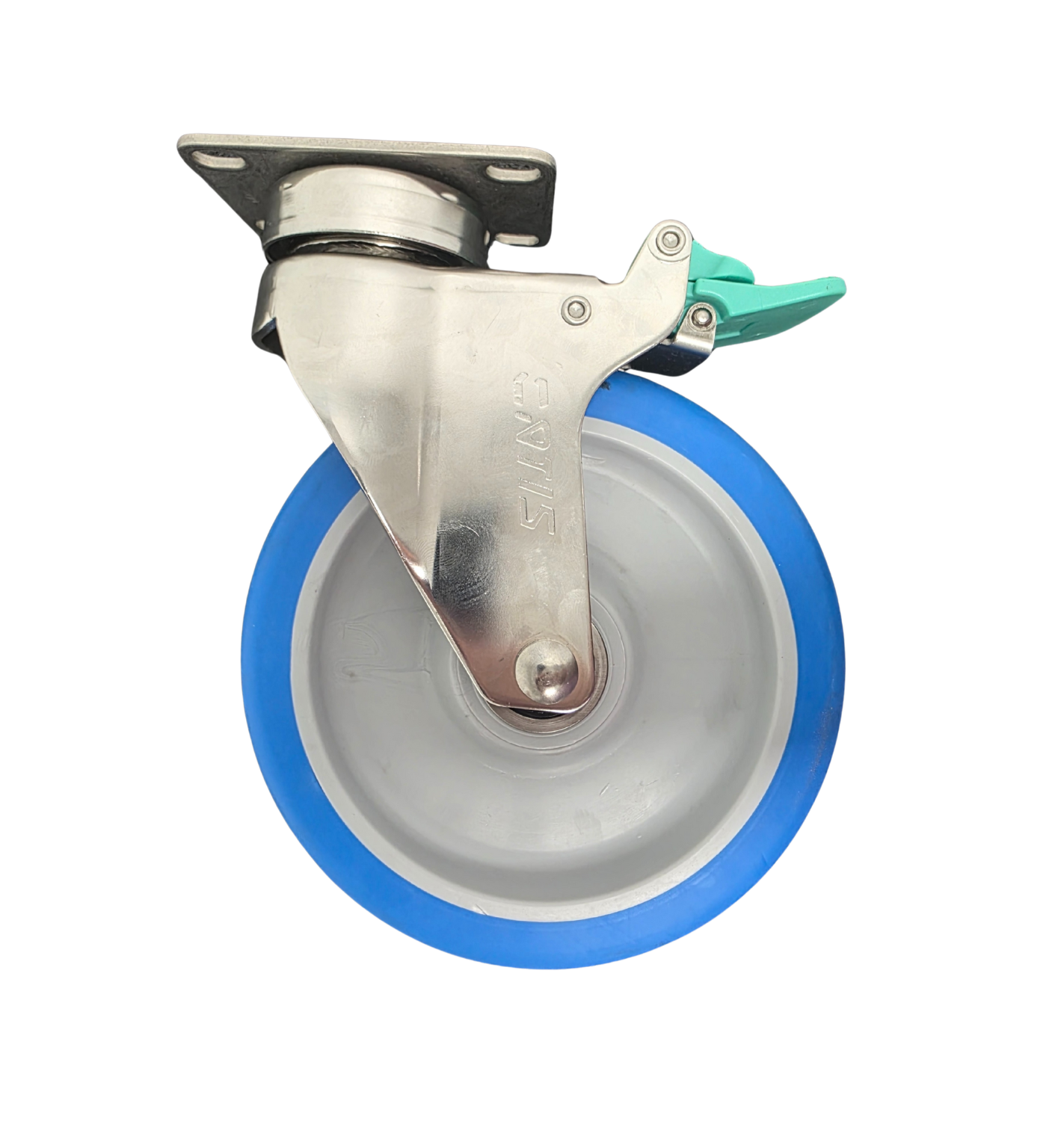

Quiet Care TPE swivel casters provide maintenance-free operation with sealed casters that are corrosion-resistant which reduce HAI’s and stainless steel precision bearings that reduce required push/pull force making it easy to transport heavy trays. Casters are temperature resistant to 280 degrees F.
Double-walled, channel-enforced, welded, double-hinged glass or stainless steel doors that swing 270 degrees.
Paddle latches to open doors include a built-in clasp to accommodate for tamper-evident locks
Two full-length push handles on both ends
One sturdy, wire rollout shelf
Sound deadening channel in the center back and sound deadening angle welded underneath the top
A pan-shaped and step down bottom sloped to facilitate draining
Protective, encircling rubber bumper set in a stainless steel channel
Easy-to-clean stainless steel
Optional Features
Drop shelves - 125lb weight capacity
Recessed push handles
6 types of shelving
Additional shelving

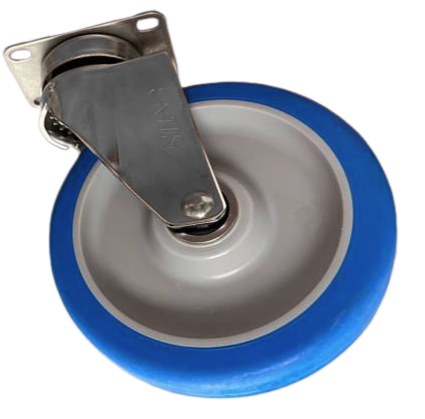

Part # 8200612501
